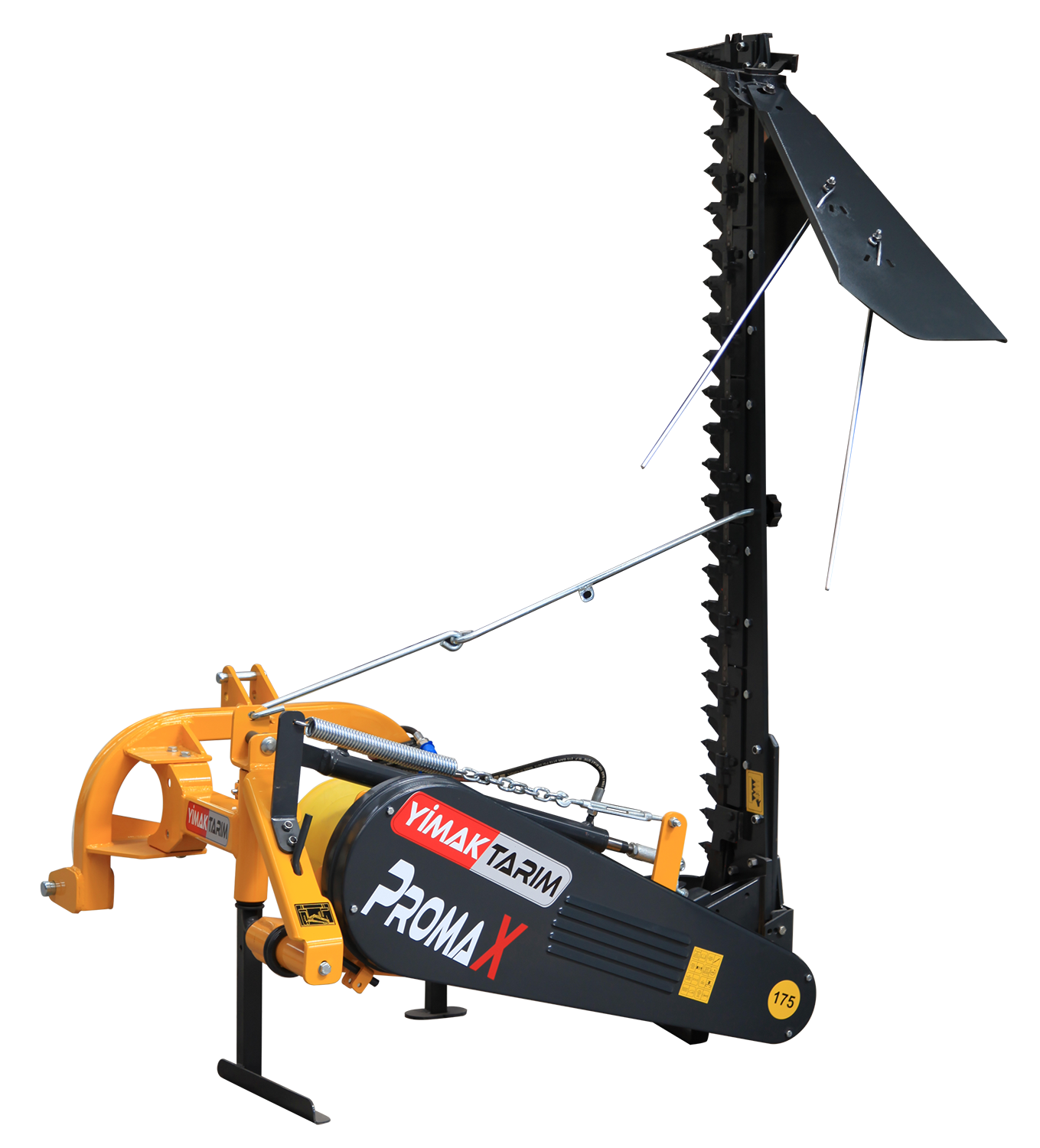

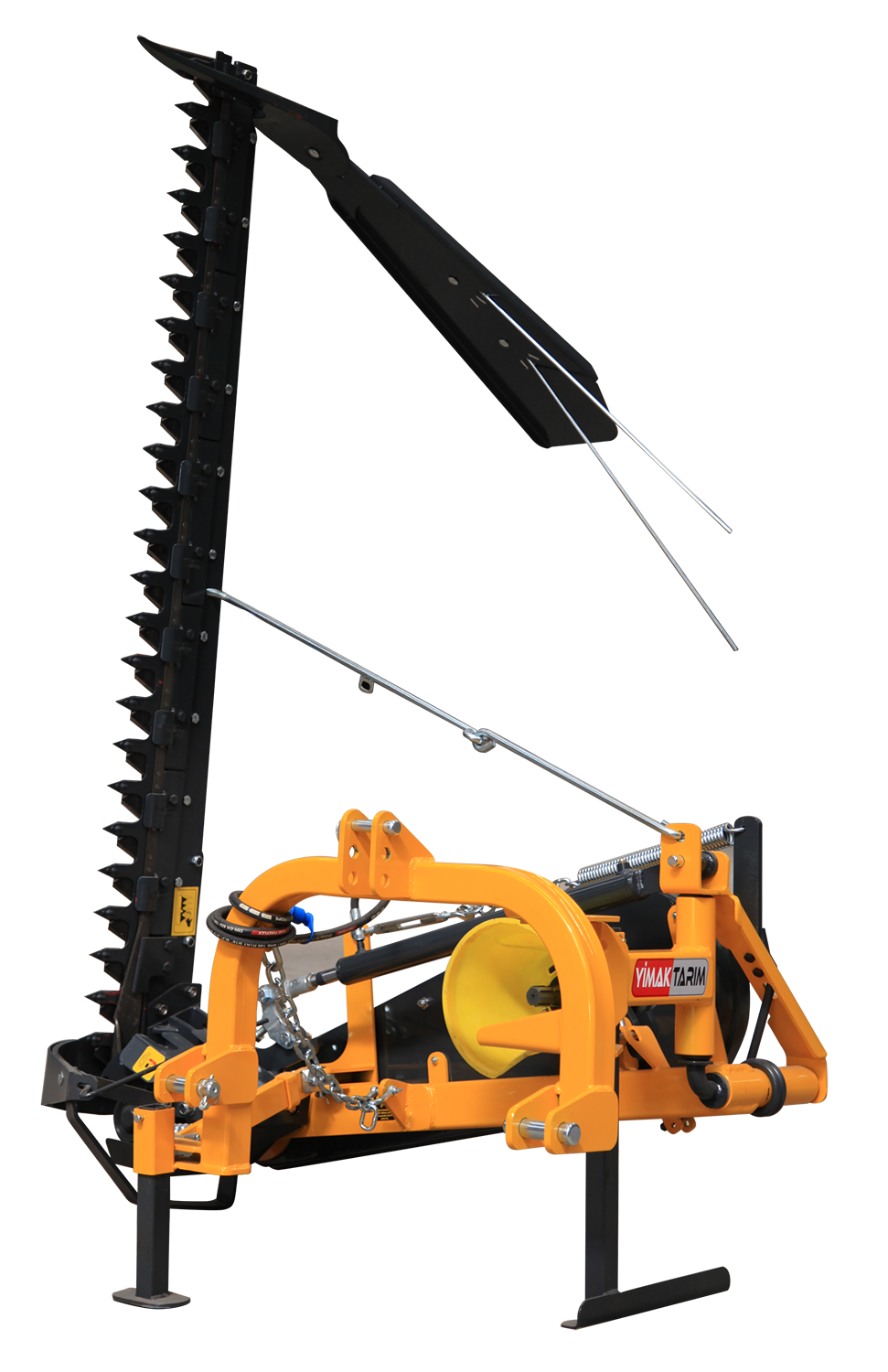

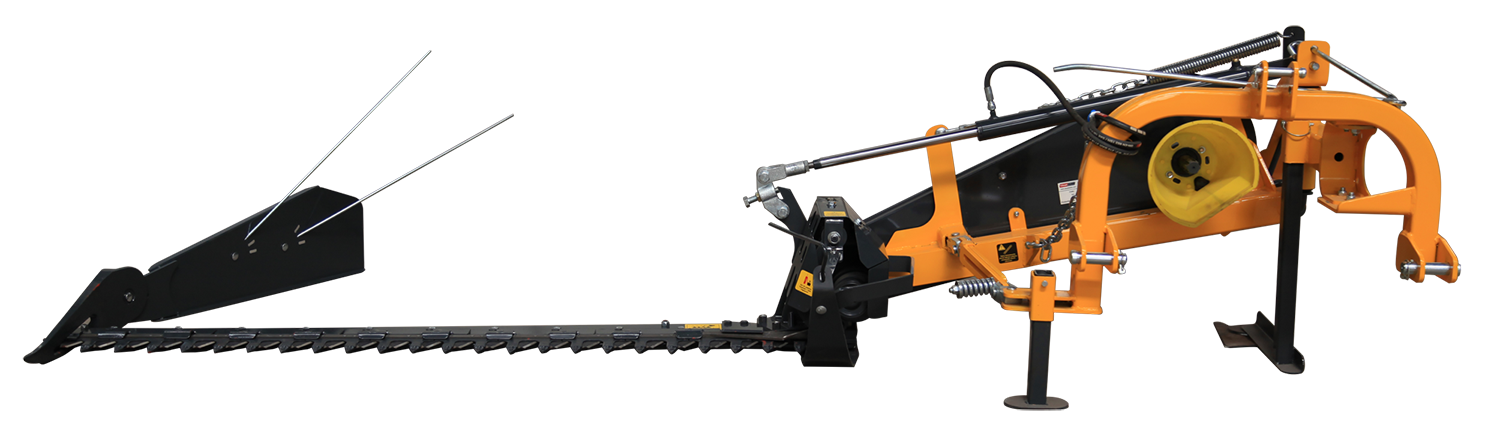

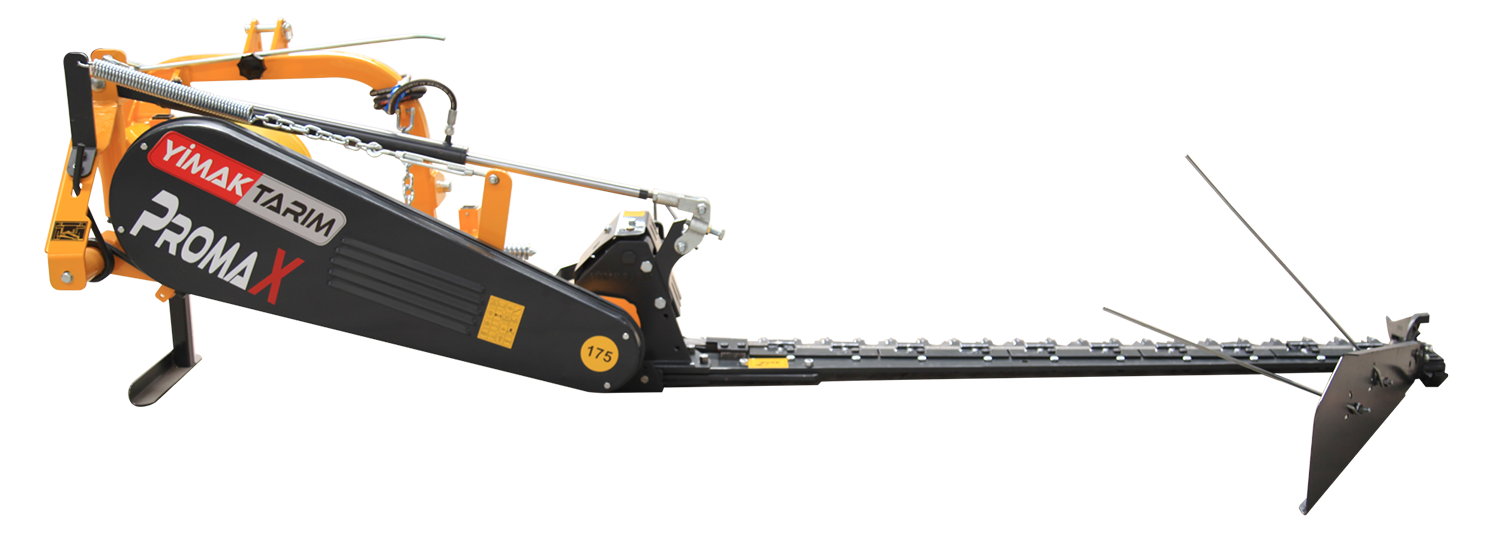

Promax Zaga Type Double Movement Bar Mowers
Machine Specifications;
*Mowing Width: 175 cm.
*Number of Leaf Blades: 24 Pcs
*Number of Hair Harpses 2: 12 Pcs
*Total Weight: 250 kg.
*Tail Shaft Speed: 540 d.d.
*Tractor Power Requirement: 25 Hp
*Cutting Part Position Adjustment: With Hydraulic Piston.
Description
It is connected to the tractor with 3 hanger systems and works with the movement it receives from the tail shaft.

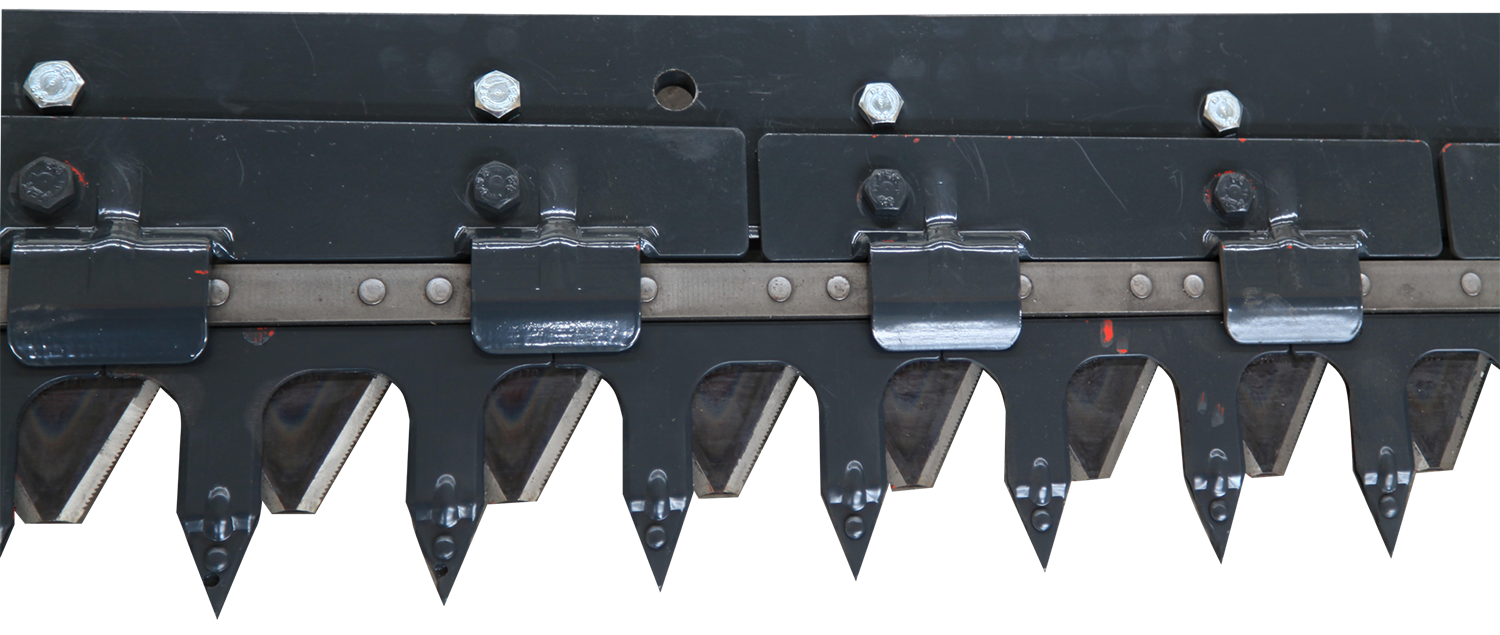

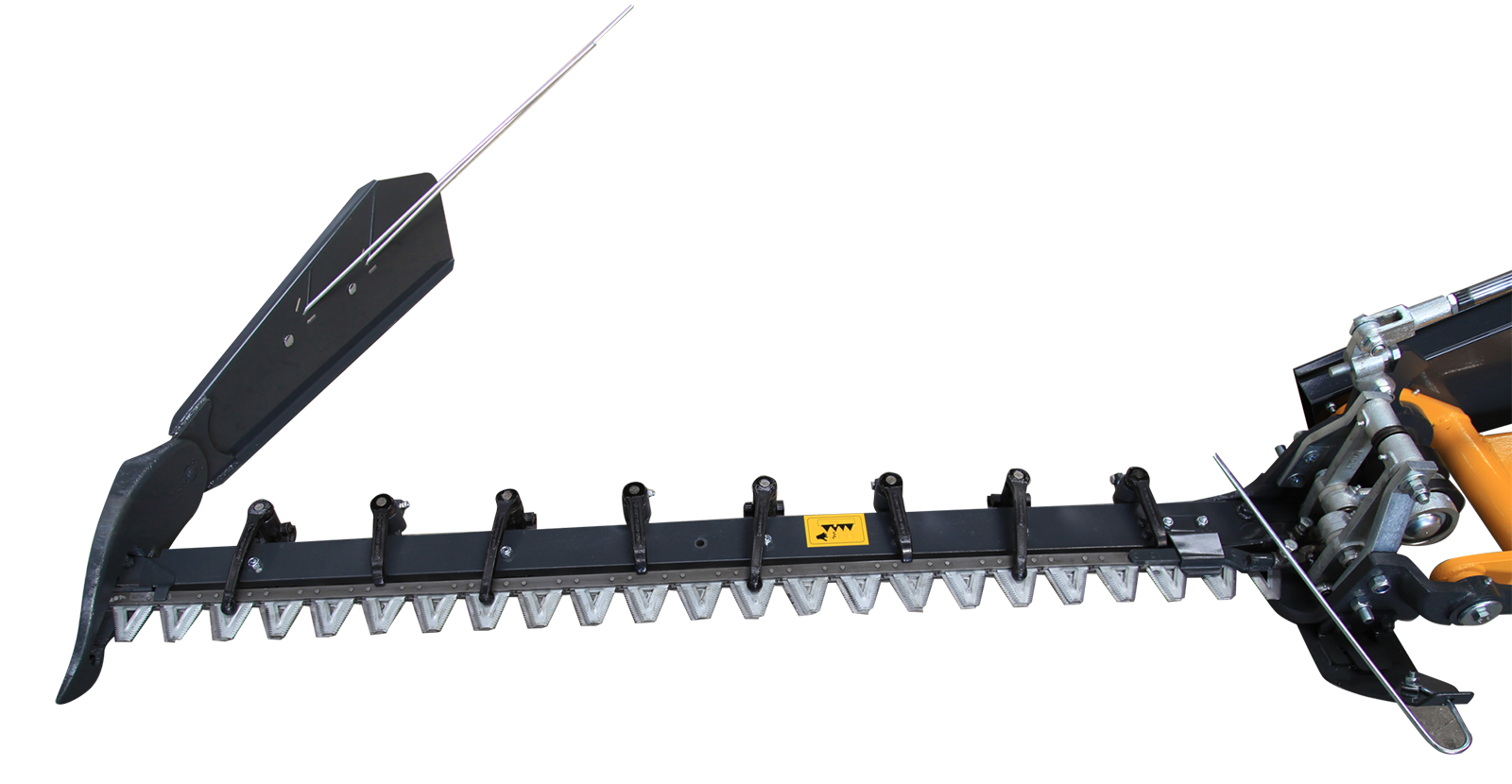

Leaf blades make shear cuts by moving in the opposite direction of each other with hair harpssa in the hair harpses. (In this model, hair is ly mobile on harpses.)
The automatic protection mechanism on it is switched on when it is stuck in an obstacle, preventing damage to the machine.
The wing behind the cutting section opens the tractor wheel space, preventing the harvested product from being crushed and damaged by the wheel.
It can be used even in small garden type tractors that do not tire the tractor.
The cutting part position adjustment is hydraulically adjusted before going down the tractor.
The blades work in each position (Including in the upright position).
It can be used efficiently in harvesting green feed crops and legumes.
The recommended use is 2-3 normal gears 12-16 gas. (Operator, field status may vary depending on tractor type.)
MOWERS WITH ZIP AND LEAF BLADES
